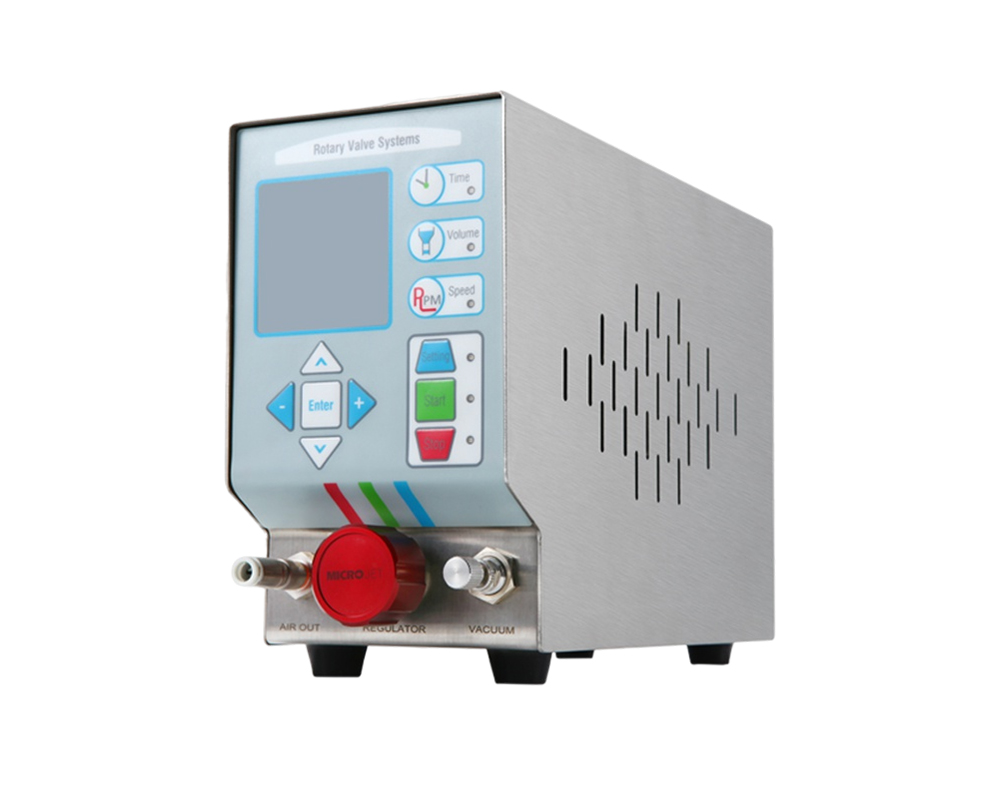

Screw valve controller LK-20

1. Size: 280x105x185 (LxWxH)
2. Weight: 3150g
3. Input power: 220 VAC (+/-10%), 50/60Hz input
4. Start-up circuit: 0V contact or 5–24 VDC start-up signal;
5. INIT signal duration: not less than 0.015S instantaneous or maintain steady state
6. Time control range: 0.001~999.9S
7. Input pressure: 4.5–7.0 bar (65–100 psi)
8. Air pressure output: 0~0.5Mpa
9. Vacuum output: 0~-101Kpa
10. Barometric pressure delay or advance: maximum 0~999ms
11. Operating modes: time, metering, speed
12. Operating conditions: temperature: 5–75°C
13. Humidity: 85% RH @ 30°C, 40% @ 45°C,
14. Altitude: up to 2000 m (6562 ft)

The controller interface can realize a variety of mode switching work, which can achieve accurate and fast dispensing, Chinese operation interface mode diversification, with motor reversal function, more direct glue breaking

LK-20 precision valve controller is a high-precision control system specially created by our company for screw valves, the system integrates motor control, output air pressure fine control and vacuum control and other necessary functions of screw valve dispensing, powerful functions are suitable for supporting our various screw valve applications.

Chip: silicon Mai, wafer, LCD, OLED, photovoltaic, new energy, medical
